CR IP700 common rail test bench is the professional test bench which is used for testing common rail system. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured value.

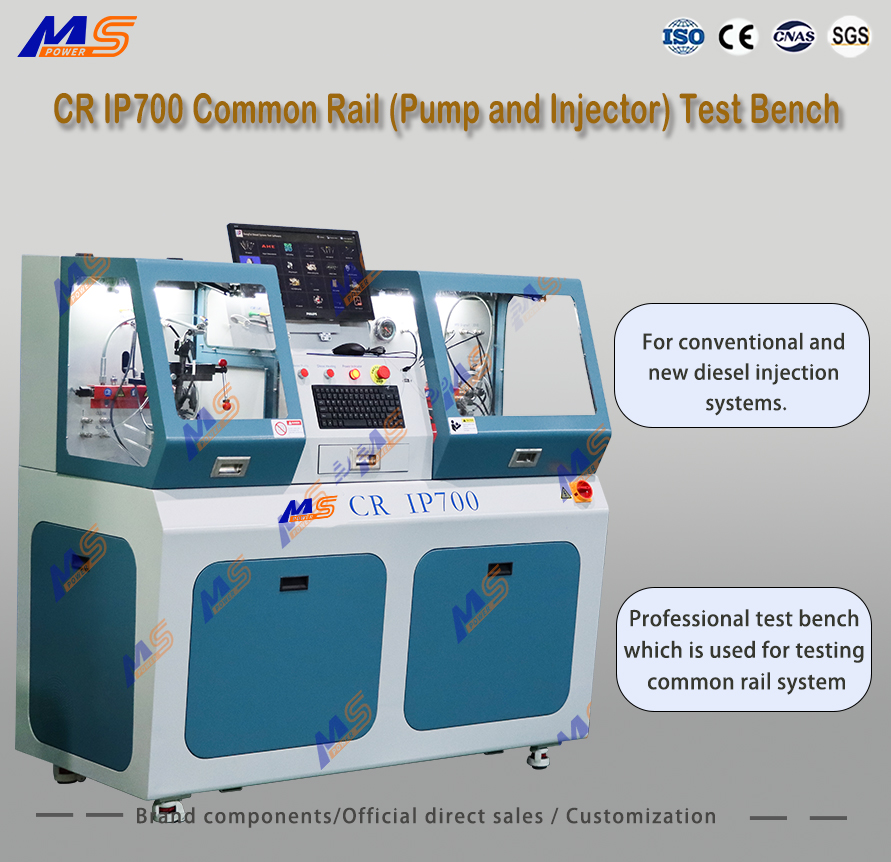

Name：CR IP700 Common Rail (Pump and Injector) Test Bench
More recommendations > >
Details can be found online

Buttons Next
Ask now
Online inquiry
  • product details
  • 评价

Function:

  1. Test common rail injectors/Piezo injectors (2pins and 4pins);

  2.  Can test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection;

  3. The Highest rail pressure is 2800 bar;

  4. Test data can update online;

  5.  CR injector parts test: solenoid valve test, opening pressure test, opening pulse width test;

  6.  CR injector resistance and inductance test;

  7.  Test one time injection;

  8.  CR Pump test(Double ZME);

  9.  CR pump camshaft sensor resistance & inductance test;

  10.  CR pump metering unit resistance & inductance test;

  11. CR pump PCV,IMV resistance and inductance test;

  12.  CR pump parts test: ZME, DRV;

  13.  Test HP5 HP6 pump (Optional);

  14. BIP (Optional)
